Stories architecture

Story location

The stories are located on a SD-Card flash memory. The following file system formats are supported by openStoryTeller:

FAT32
exFAT

Connect OpenStoryTeller to your computer using a USB cable, a USB-disk will show up on your file explorer.

Story root tree

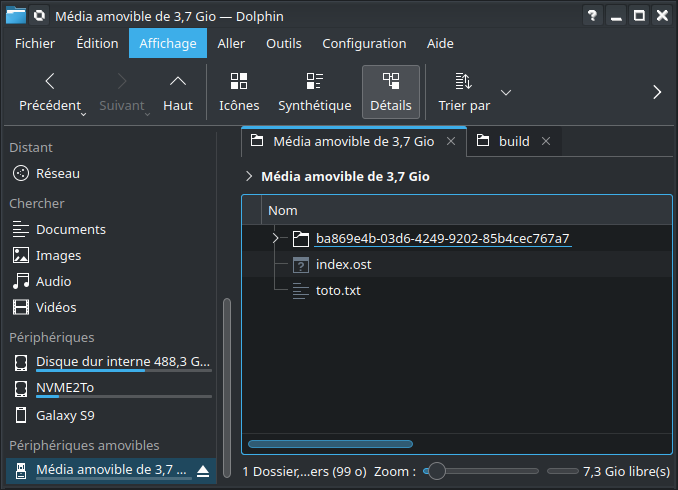

A typical folder organisation is showed here:

At the root of the SD-Card, a special index file named index.ost must be present. It contains the list of installed stories as well as other informations about each story.

Story folder organisation

A story folder name must be a UUID v4 string.

It must contains:

A project file in JSON named project.json
A pre-compiled story binary name story.c32
A directory named assets

The assets directory must contains all the resource files for the story (sounds, images...).

Index file format

General principle

This binary file is encoded using a simple TLV format (Type Lenght Value) supporting the following types:

Type	encoding
Object	0xE7
Array	0xAB
String	0x3D
Integer	0x77
Real	0xB8

Each Type is encoded on a byte.

The Length is encoded on two bytes, little endian. The length indicates the size of the Value.

Application on the Index File Forma

Array
- Object
  - String (UUID, folder name of the story)
  - String (title image file name)
  - String (sound title file name)
