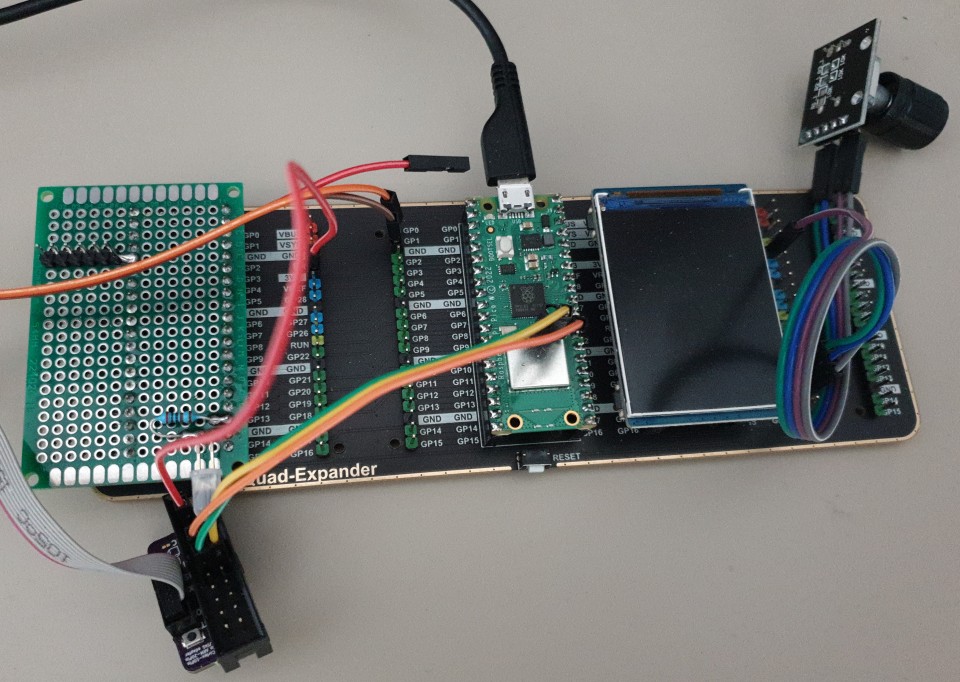

Development kit: Raspberry Pico

This is the official development kit. It offers the following advantages:

1. Low cost
2. Parts are easy to find
3. Low wiring/soldering: usage of a motherboard
4. SWD debug port

Current status: ON DEVELOPMENT

Bill of materials

Here is an example of components.

• Links are examples of what to buy, price is not optimized
• Use traditional suppliers for generic components (buttons, resistors...), such as Adafruit, PiHut, Pimoroni, Kubii, Gotronic...

Part	Price	Shop	Link
Audio board + speaker	13 €	Waveshare	Buy on Amazon
Raspberry Pico W	9 €	Kubii	Buy on Amazon
2inch LCD (320x240)	14 €	Waveshare	Buy on Amazon
Some push buttons and rotary switches	4 €	Any	Buy on Amazon
UPS module or Pimoroni LiPo Shim	15 €	Waveshare	Buy on Amazon
LiPo battery 500mAh	9 €	Any	Buy on Amazon
Carte d'extension GPIO Pico 4 modules	15 €	Waveshare	Buy on Amazon
TOTAL	67 €

In addition to this list, you may need some more materials such as wires, prototype boards, resistors...

We may propose in the future a PCB to help the connection without soldering.

Developers: how to build from the source code

Install build tools

Install build tools, example for a Debian based operating system:

• sudo apt install gcc-arm-none-eabi
• sudo apt install picolibc-arm-none-eabi

Download the pico SDK somewhere on your disk:

git clone https://github.com/raspberrypi/pico-sdk

Copy past the following command line, execute at the directory root. Replace the PICO_SDK_PATH value with the real location on your disk where you have installed the Pico SDK.

First, create a CMake build directory:

mkdir build
cd build

Then generate the makefile (we use the Pico toolchain here, so there is no specific toolchain file to setup.)

cmake  -DCMAKE_BUILD_TYPE=Debug -DOST_BUNDLE=RASPI_PICO -DPICO_SDK_PATH=../pico-sdk -DPICO_BOARD=pico_w ..

This assume that the Pico SDK is located on the git project root directory. Change this path according to your real Pico SDK location.
